Ra3MaN's Founding chamber - Outworld Design.


  • Please log in to reply
6 replies to this topic

#1 Offline Ra3MaN - Posted March 1 2015 - 11:25 PM

Ra3MaN

    Advanced Member

  • Members
  • PipPipPip
  • 61 posts
  • LocationPretoria, South Africa

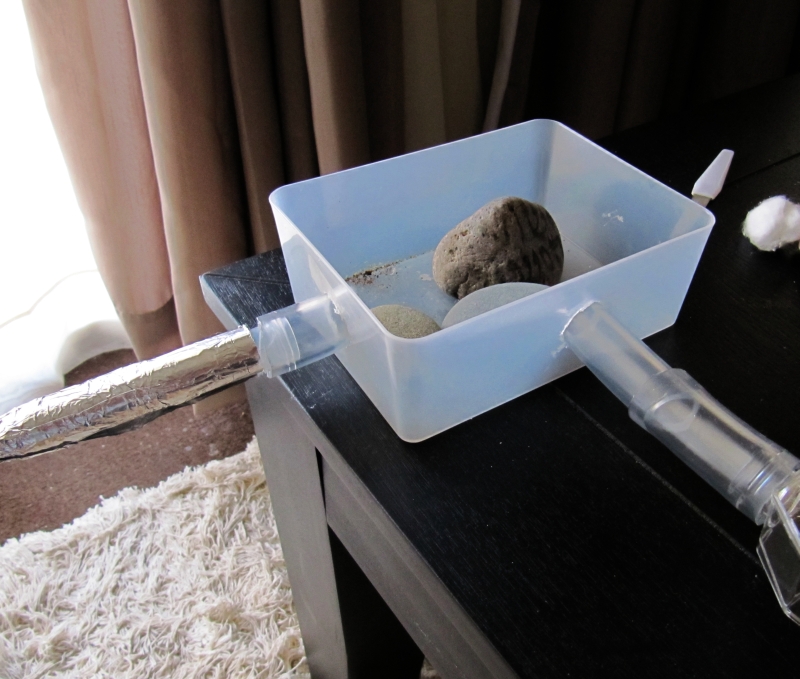

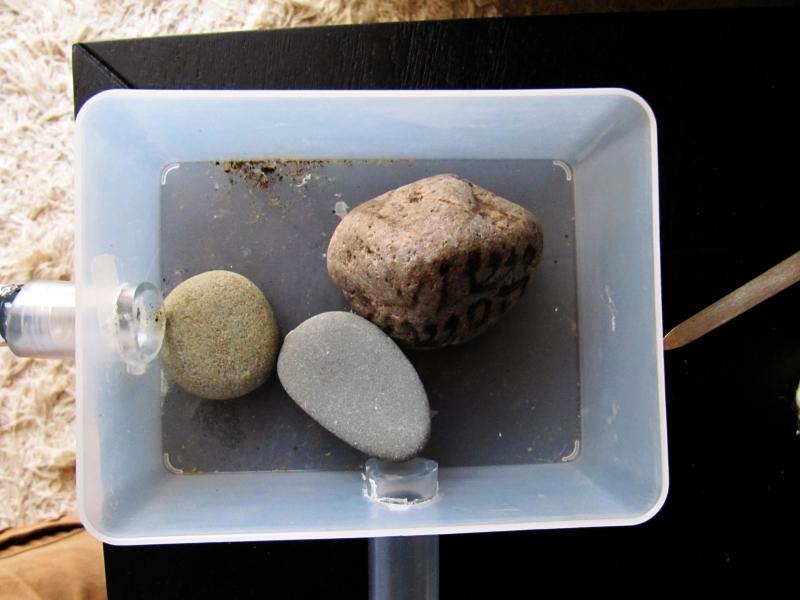

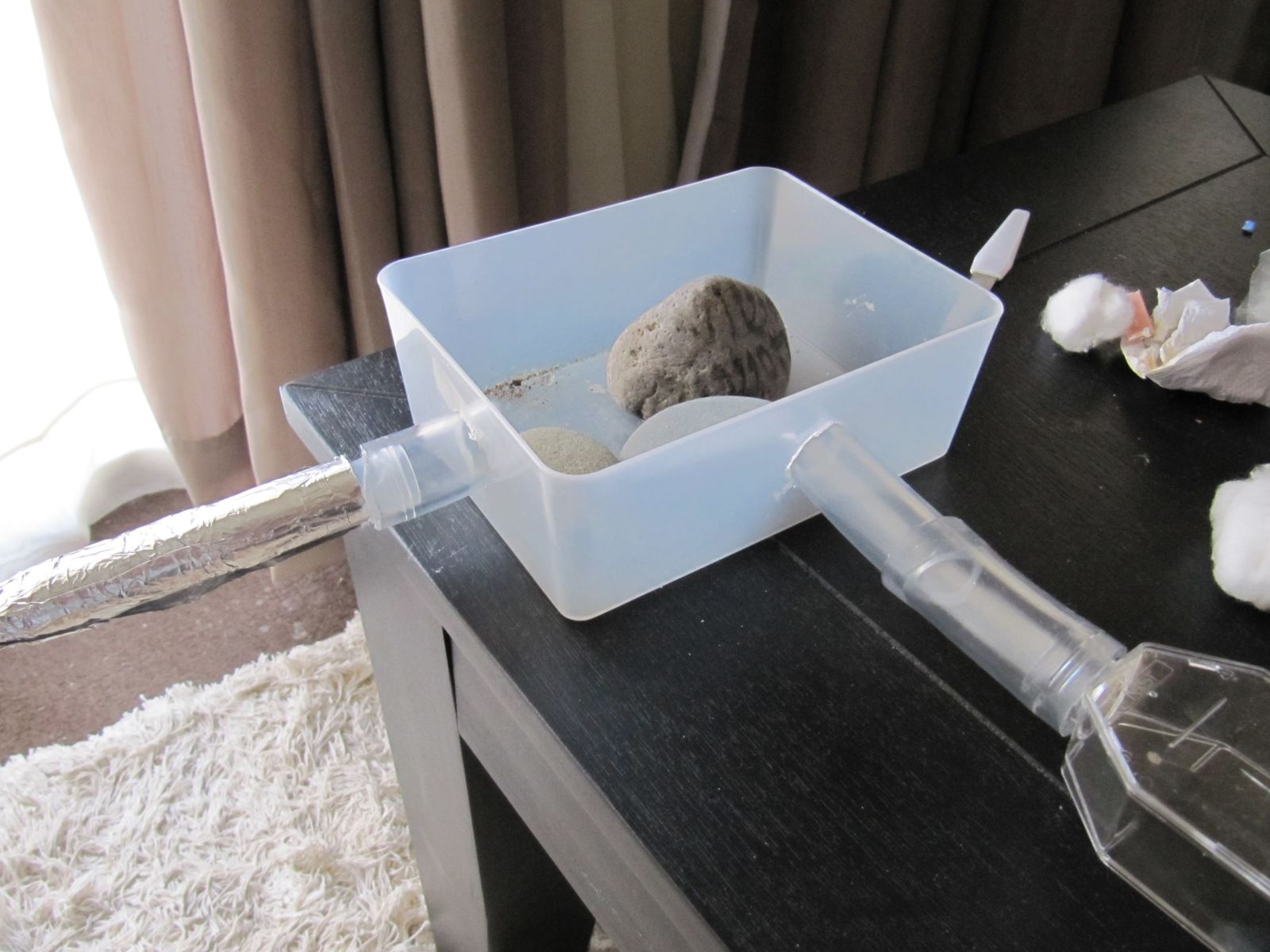

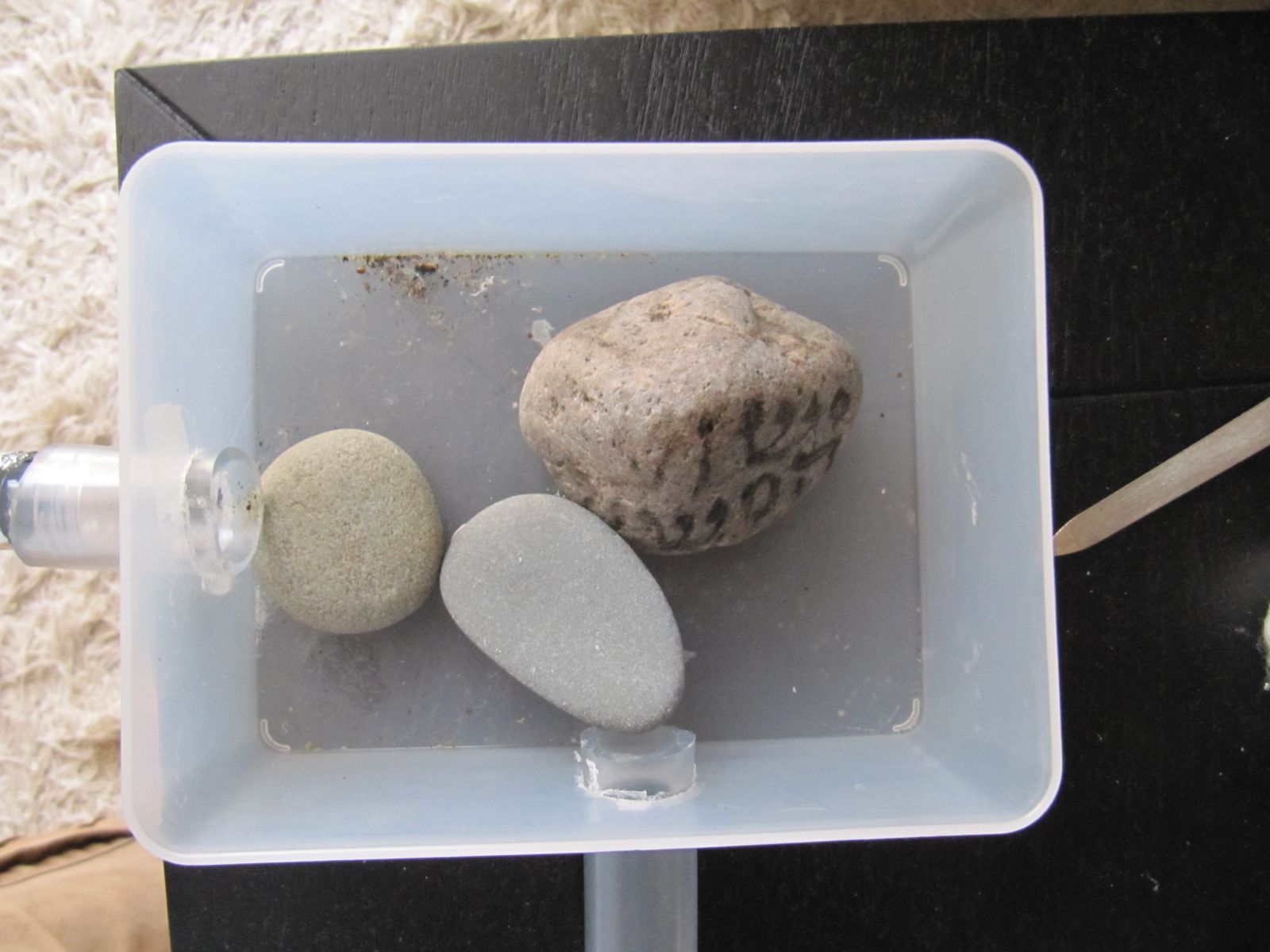

My design is as follows



IMG 6105 Formicarium

IMG 6107 Formicarium

IMG 6106 Formicarium

IMG 6108 Formicarium



I found that using a soldering Iron to make the holes is amazingly accurate and great when using plastic. Especially if you intend on using food containers and such. I used two sizes of tubes, one which fits in to the other, in case I need to join an additional outworld/Formicarium at a later stage. The only down side is that the melting plastic creates fumes, this however is only a disadvantage if one intends on making additionally holes into formicariums with ants already inside.

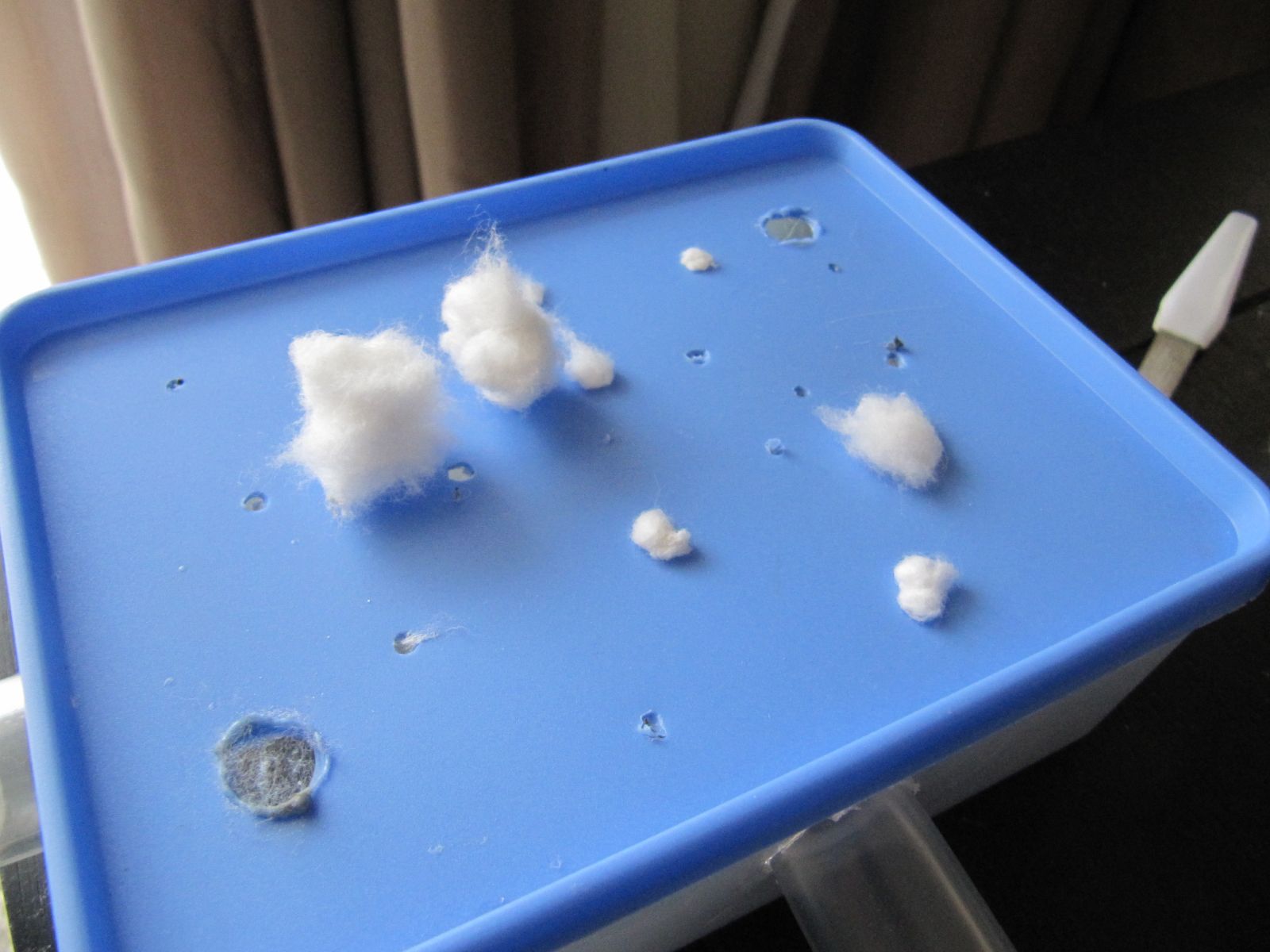

The ventataltion holes i made were too big so I blocked them up with cotton, and that eliminates my need for petroleum jelly or oils. I will buy a more transparent container at a later stage for my out World...



I hope this helps someone out.

Attached Images

  • IMG_6105.jpg
  • IMG_6108.jpg
  • IMG_6107.jpg
  • IMG_6106.jpg
  • IMG_6105.jpg

Edited by Ra3MaN, March 3 2015 - 12:07 AM.

  • Gregory2455 likes this
IMG 5858




#2 Offline AntGuySA - Posted March 1 2015 - 11:57 PM

AntGuySA

    Advanced Member

  • Members
  • PipPipPip
  • 38 posts
  • LocationDurban, South Africa

Hey Ra3MaN



looking good buddy keep up the great work and thanks for the soldering iron tip.



Regards, AntGuySA


It`s not rocket science


#3 Offline Jonathan21700 - Posted March 2 2015 - 1:44 PM

Jonathan21700

    Advanced Member

  • Members
  • PipPipPip
  • 807 posts

Yea, I too use a soldering iron for making holes and it works really good. :)


  • Ra3MaN likes this

#4 Offline Ra3MaN - Posted March 8 2015 - 11:06 PM

Ra3MaN

    Advanced Member

  • Members
  • PipPipPip
  • 61 posts
  • LocationPretoria, South Africa

Update to the formacaruim.



Hey guys, I have updated my plastic formacaruim, I am starting to think of my formacaruim as a space station because I can add modules to it. I have yet to see if my ants will use it. They are still a small colony but I will leave it there anyway.



IMG 6183-1

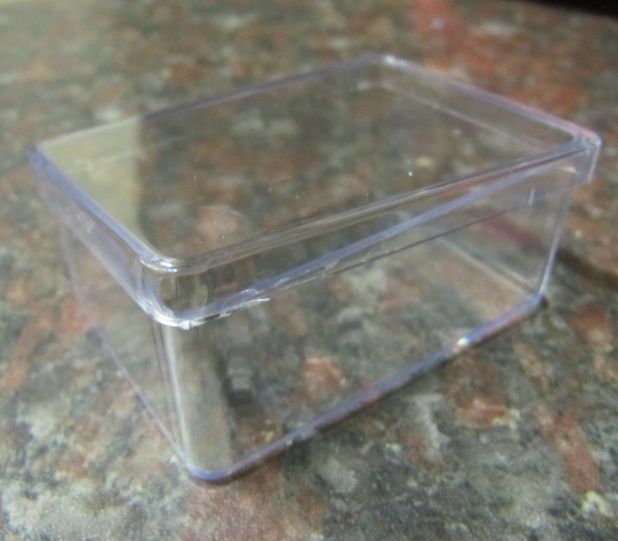

So I started out with transparent containers used for cosmetics. That I obtained from a local plastics store here in South Africa.



IMG 6160 2


I used a soldering Iron to make the holes in the plastic. Clear plastic is pretty brittle, So this is my favourite method to make the holes. A word of caution, the fumes of the melting plastic may cause irritation to the lungs, so I advise that you do it in a well ventilated room if you want to use that method to make holes…



IMG 6166 3

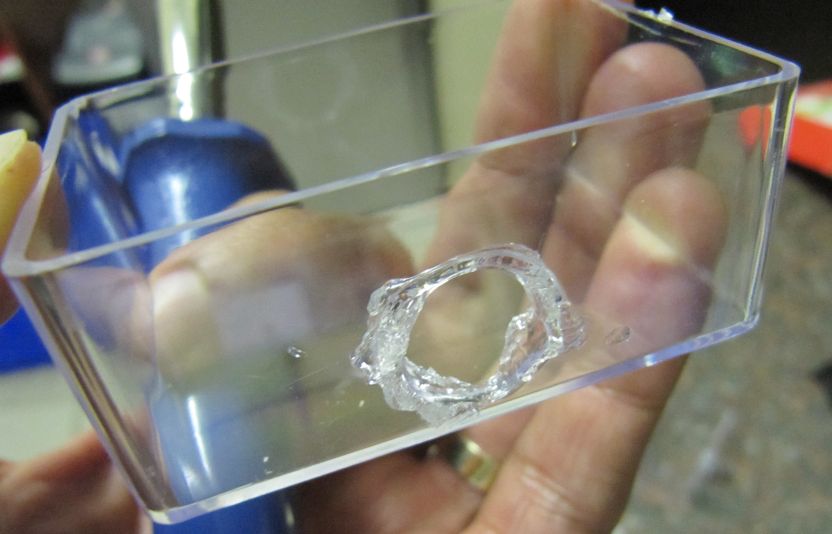

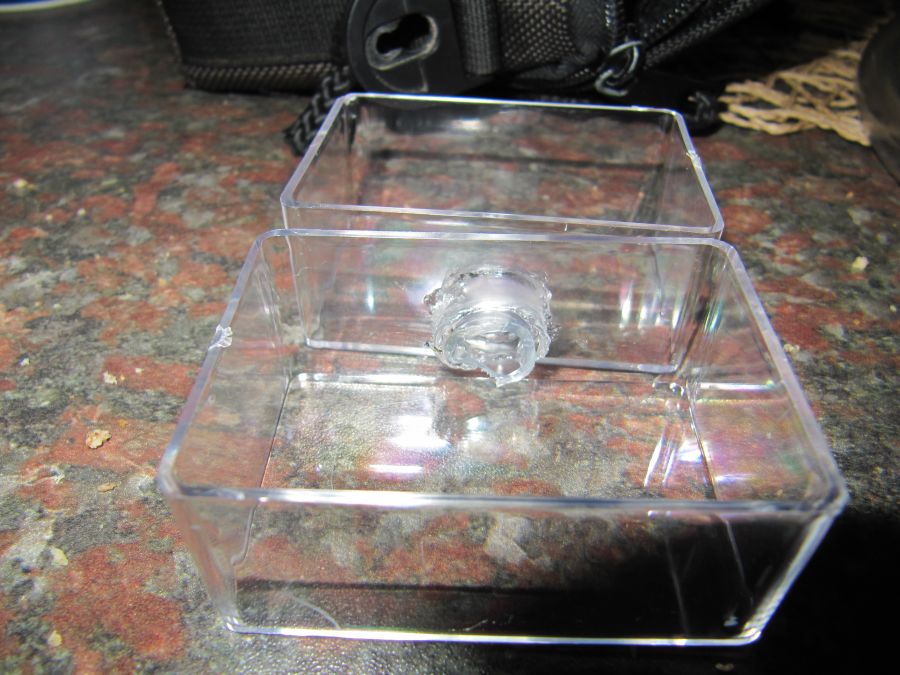

This is just a look at how it looks after I have made the hole.



IMG 6169 4

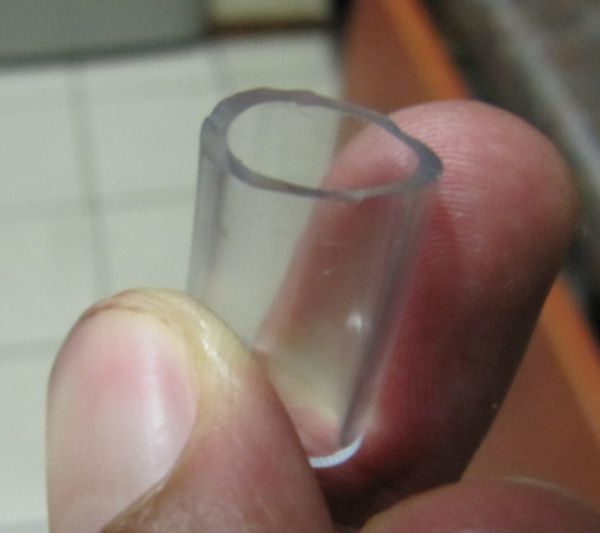

I took a short piece of tubing to connect the individual pieces together.



IMG 6164 5
IMG 6170 6

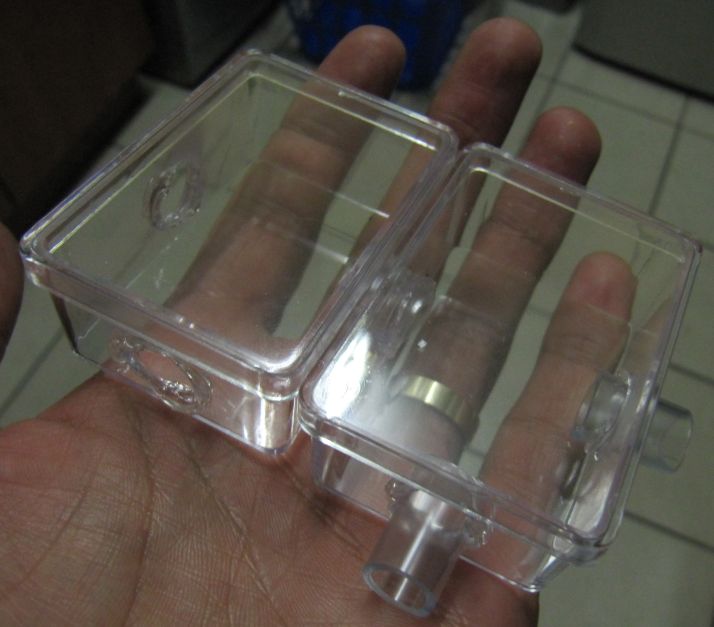

I managed to get the holes pretty uniform and in similar areas on the container so that made it easy to fit the containers together. The only thing that I messed up with a bit is that I made the holes a bit high.

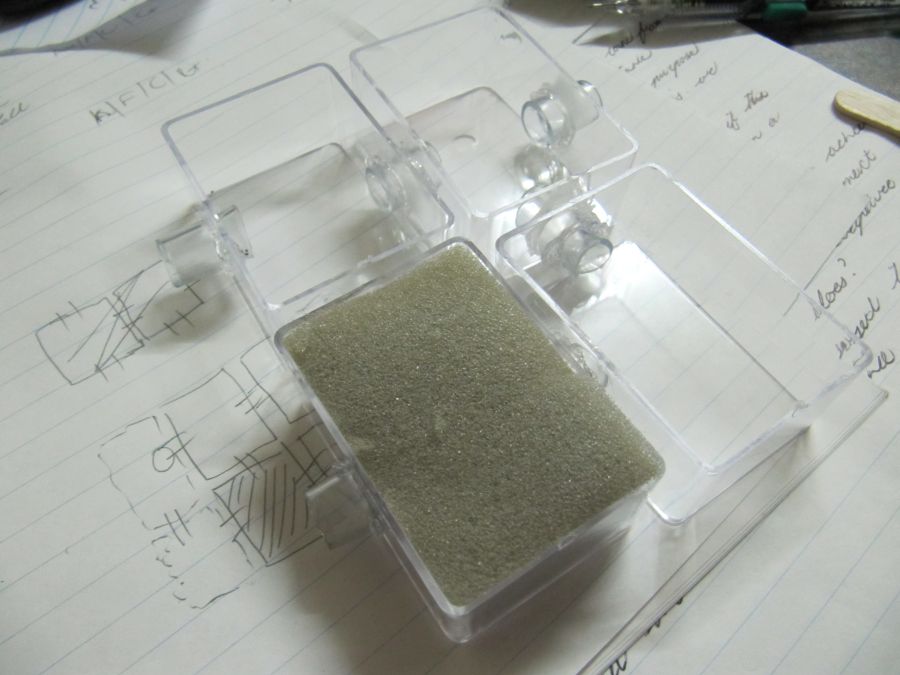

For my reservoir, I just connected a container in the same fashion and just stuck a piece of sponge in there. I filled the tubes that lead into that container with cotton so that the moisture can bleed into the others that are being used for brood.



IMG 6176 7

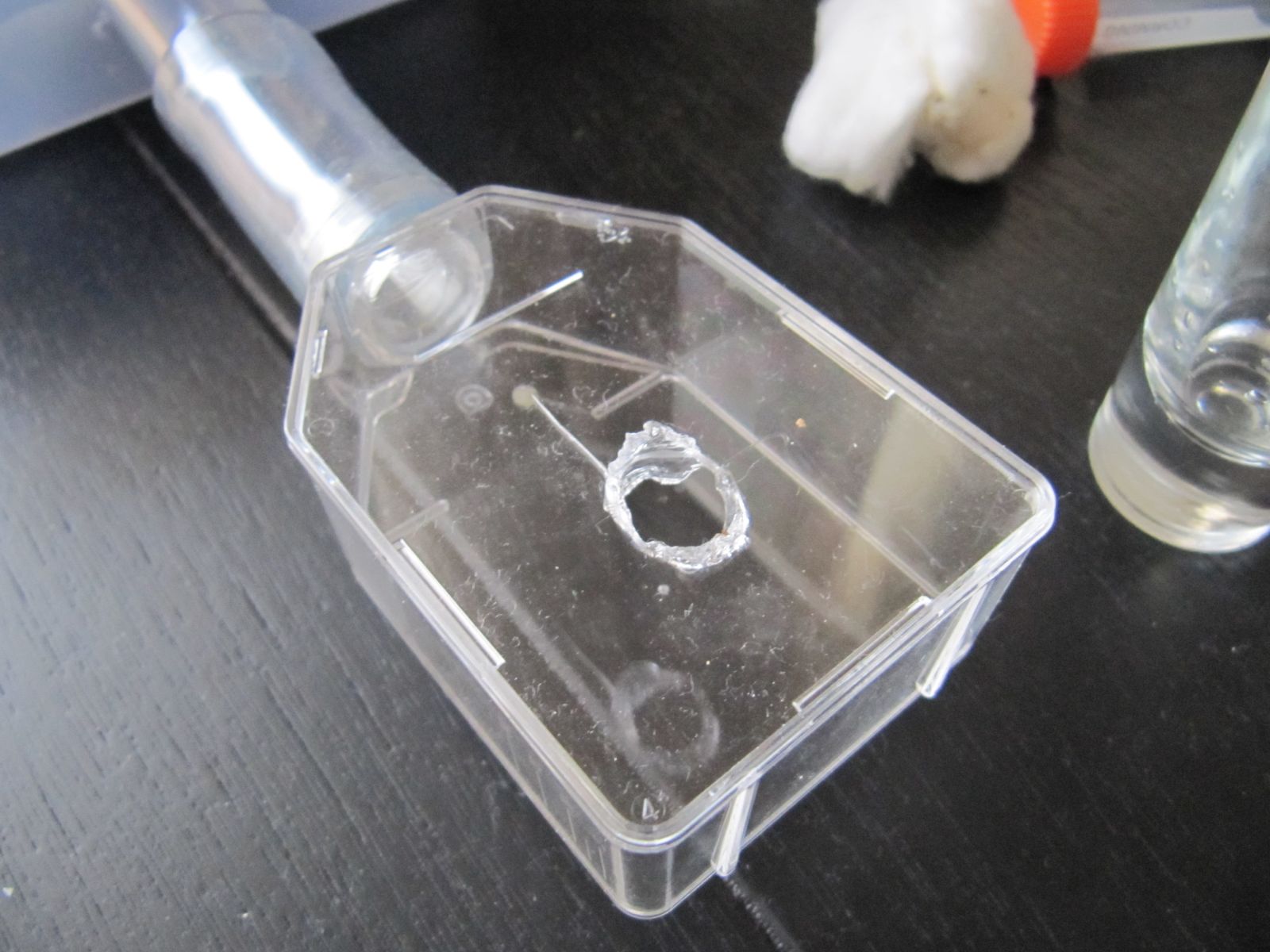

I made some holes in the tops of the containers because I notice that there tends to be a lot of condensation in most of the formicariums that I have seen. The big container is a clear plastic container that is used to store photographs.

The large container gave me the biggest hassle, because of the tubing I have selected for it. But I managed to make a hole that allows the tube to fit like a glove.

All that was left was to connect it to the main founding chamber and outworld.



IMG 6179 8

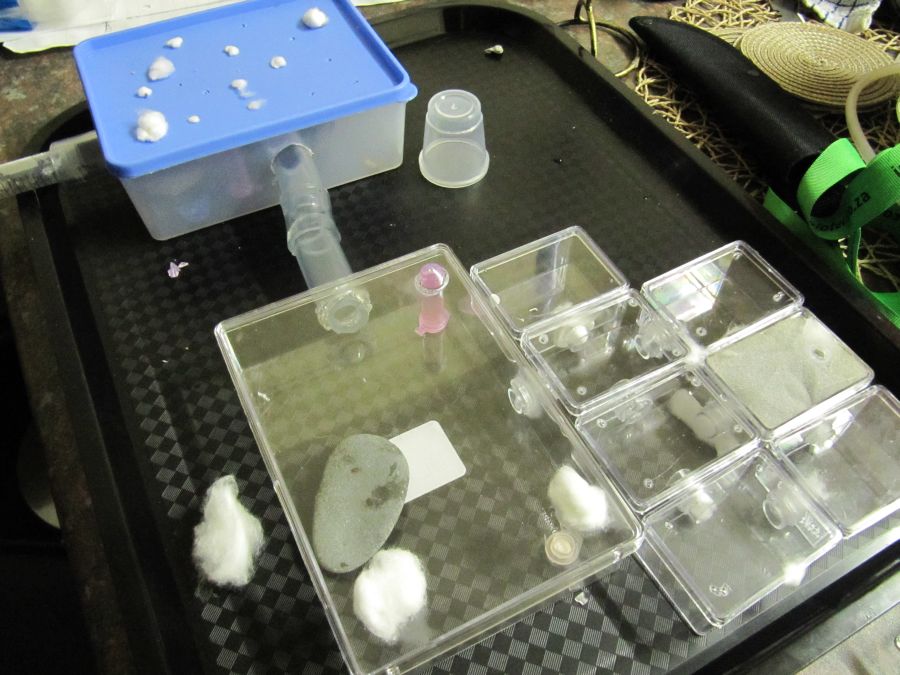

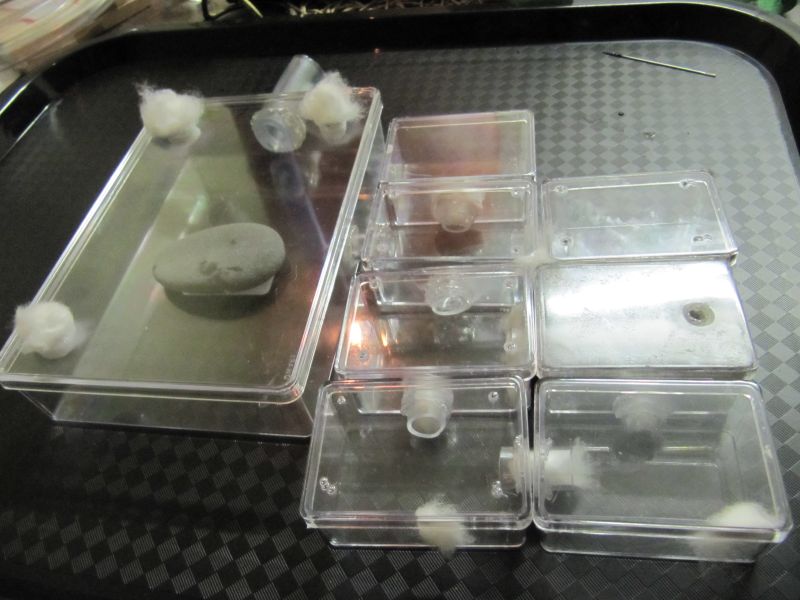

I placed the setup on a tray, because I fear that too much movement would cause the individual containers to come loose. So it seems to be working for me this way.



IMG 6186 9



The foraging workers have been regularly coming into the new open area but they haven’t found the formicarium yet…. So far, so good.



What haven’t show is my feeders that I used; I will post that in that collection of feeders topic. I have covered the new formicarium with tinfoil to encourage the ants to migrate to the new nest but I don’t think it will happen until the founding chamber’s water source dries up.


  • Gregory2455 likes this
IMG 5858




#5 Offline Gregory2455 - Posted March 9 2015 - 3:05 PM

Gregory2455

    Advanced Member

  • Members
  • PipPipPip
  • 3,286 posts
  • LocationCalifornia

Those little containers look sort of like our 'Boxbox' brand- amazing containers!


  • Ra3MaN likes this

#6 Offline Wraiith303 - Posted March 25 2015 - 10:31 AM

Wraiith303

    Newbie

  • Members
  • Pip
  • 1 posts
  • LocationSouth Africa - JHB Area

Hi guys... Finally decided to register so I can post.



Which plastic store in South Africa did you get those containers from? I'm also from South Africa, and managed to catch 4 Queens on Monday (I believe they are fertile as I managed to see them mating, and suspect they are lasius niger queens)



I'm currently using a very simple setup for the queens (Couldn't get test tubes - and the small plastic ones I got from pharmacy for storing blood samples had some anti bacterial gel in the bottom that I couldn't get out)



Would love to hear how other RSA residents are coping with ants, since it's really expensive to import all the fancy tarheel/antscanada nests



#7 Offline SMILEforAnts - Posted March 25 2015 - 10:29 PM

SMILEforAnts

    Advanced Member

  • Members
  • PipPipPip
  • 58 posts
  • LocationHonolulu, HI

Lovin the design!



This is what I eventually want to do for my S. geminata colony, but I have a hard time finding perfect little containers like what you have, out here.
